3D Vibrating Ball Mill
Description:
1.Rapid and efficient grinding and homogenization, short grinding time, can be used for rapid 2.Sample preparation for xrf analysis. 2.It is very efficient and can be ground in two cans. 3.Grinding time and vibration frequency can be digitally set and displayed, grinding results are highly reproducible. 4.The selection of sphere material is wide, and it can be applied to the choice of different experiments. It is widely used. 5.Large R angle design inside the tank, the material is not easy to pile up.
Category：
SEND A MESSAGE：mt15@mitr.cn Inquire Now
Product Paramenters
| Model | MT-SQM-2 |
| Max Feed Size | ≤1mm |
| Final Size | about 0.1um |
| Capacity | ≤2*50~80ml |
| Shake Frequency | 0-1000r/min |
| Batch Capacity | ≤2*20ml |
| GrInding Jar | Stainless steel, tungsten carbide, agate, zirconia, Teflon, nylon, polyurethane |
| Power of Motor | 120w/24v Direct connected motor |
| Outline Dimension | Main box(open cover)680*420*630mm
Main box(close cover)680*420*345mm |
| Voltage | 220V, 50-60 Hz |
| Milling Time | Within 30 minutes |
Products Description
3D Vibrating Ball Mill Product Description:
The double tank high speed three dimensional vibration ball mill has a certain angle eccentric wheel with the spindle at the connecting end of the mt-sqm-2 tank, and the eccentric wheel is connected by a tension spring to the base of the ball mill. When the motor tells to run, because of the tension of the spring, the eccentric wheel is connected by a tension spring to the base of the ball mill. When the motor runs at high speed, the eccentric wheel wobbles at high speed because of the tension of the spring, and the ball milling tank on the fixed eccentric wheel produces high speed swing because of the strong vibration when the eccentric wheel wobbles at high speed.

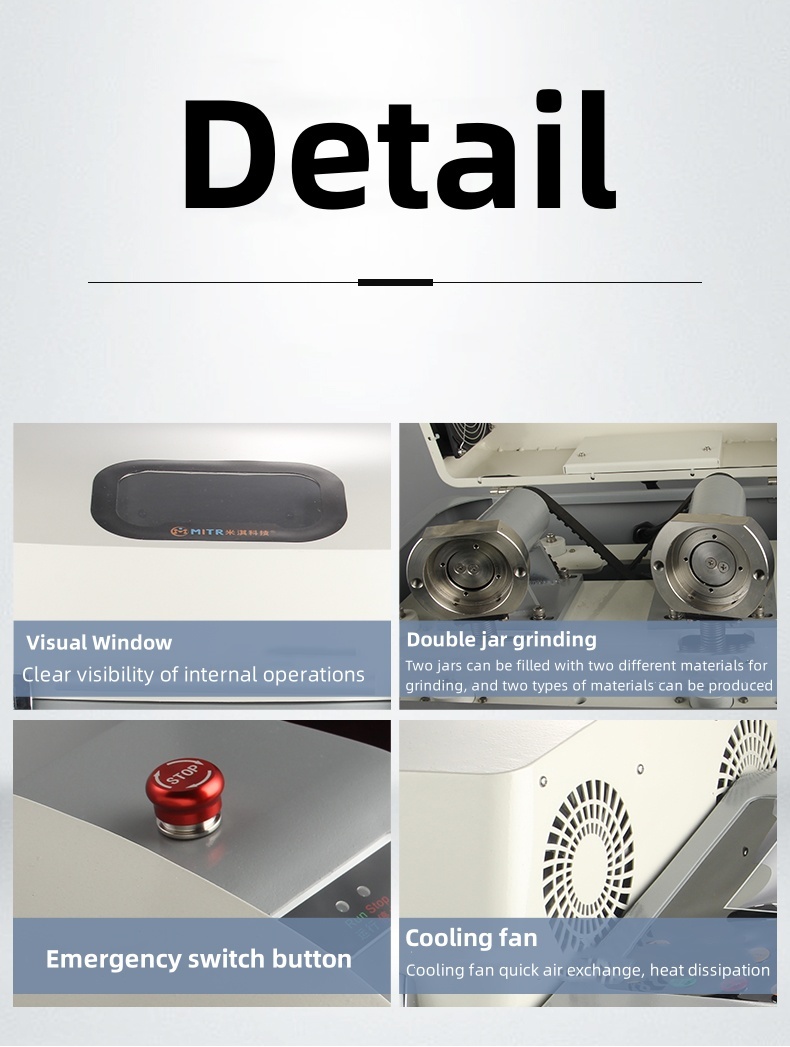

3D Vibrating Ball Mill Feature:
1.Rapid and efficient grinding and homogenization, short grinding time, can be used for rapid 2.Sample preparation for xrf analysis.
2.It is very efficient and can be ground in two cans.

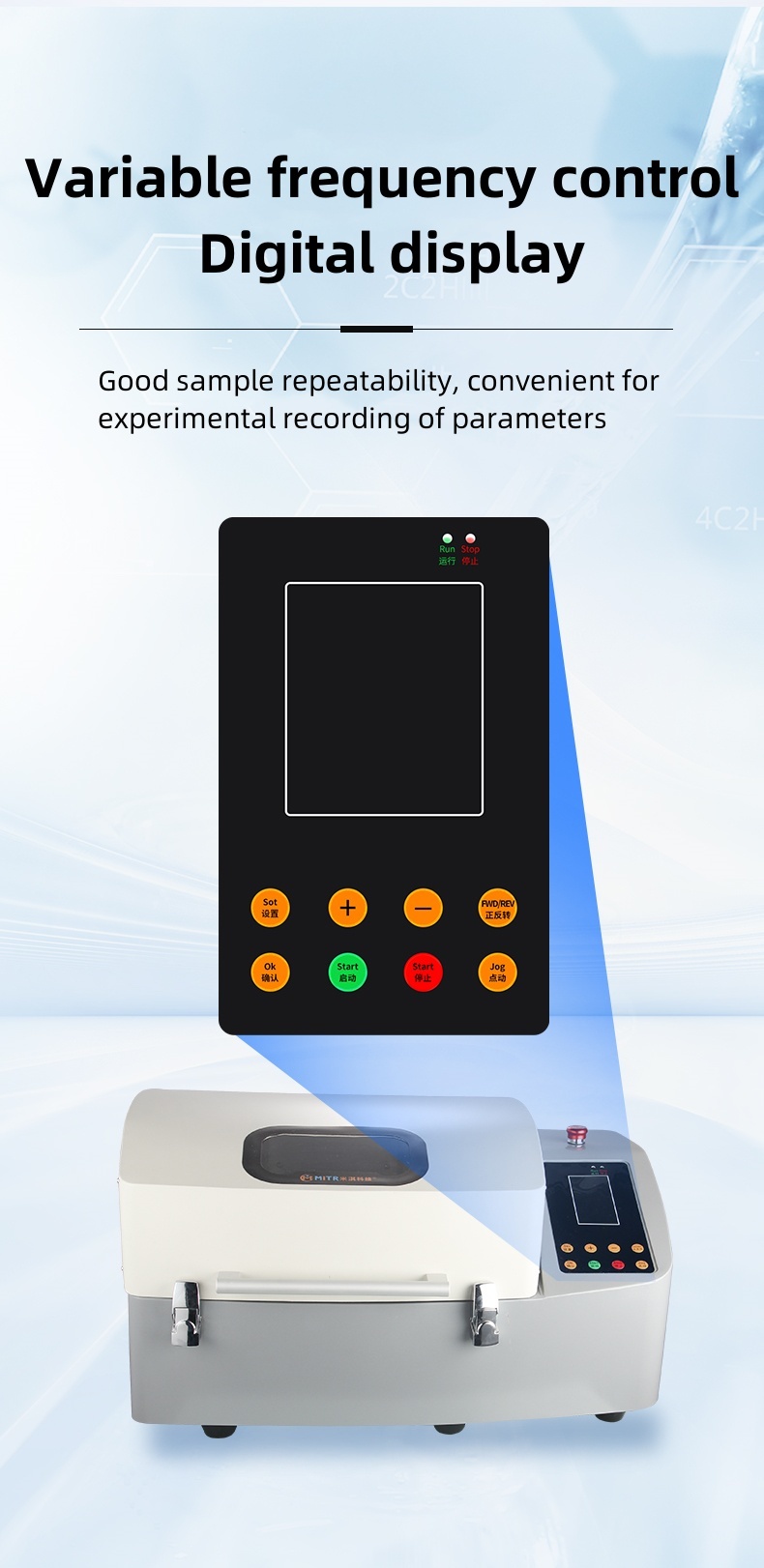

3.Grinding time and vibration frequency can be digitally set and displayed, grinding results are highly reproducible.
4.The selection of sphere material is wide, and it can be applied to the choice of different experiments. It is widely used.
5.Large R angle design inside the tank, the material is not easy to pile up.
