Manual Button Battery Crimper Machine
Description:
Category：
SEND A MESSAGE：mt15@mitr.cn Inquire Now
Products Description
The main function of Button Battery Crimper Machine is to press electrode materials, electrolytes and other raw materials into the shape of the button battery through a series of process steps. It uses electric drive, with high production efficiency and stability. The device is usually equipped with an intelligent control system that can precisely control various parameters during the pressing process to ensure that the produced button battery has consistent quality and performance.
Features
2)Electroplated countersunk hexagon socket screws will not hurt your hands
3)Dual-scale pressure gauge without conversion
4)Pure aluminum handle is beautiful and durable
5)Labor-saving design of the handle position
6)The chrome-plated cylinder has good sealing and long service life
|
Model |
MC-5N |
MC-5NS |
|
Pressure range |
0-2T (0-25MPa) |
|
|
Piston diameter |
Chrome plated cylinder Φ32mm(d) |
|
|
Pressure gauge |
Dual scale display of pressure and pressure |
Digital display： 0.00-40.00MPa |
|
Standard tooling |
Standard CR20 series package mold |
|
|
Sealing mold |
Optional CR16, CR20, CR24, CR30, etc |
|
|
Sealing pressure |
Generally between 0.8-1.2 tons |
|
|
Remover mold |
Optional CR16, CR20, CR24, CR30, etc |
|
|
Stripping pressure |
Generally within 0.4 tons |
|
|
Dimension |
210×165×290 mm |
|
|
Weight |
12kg |
|

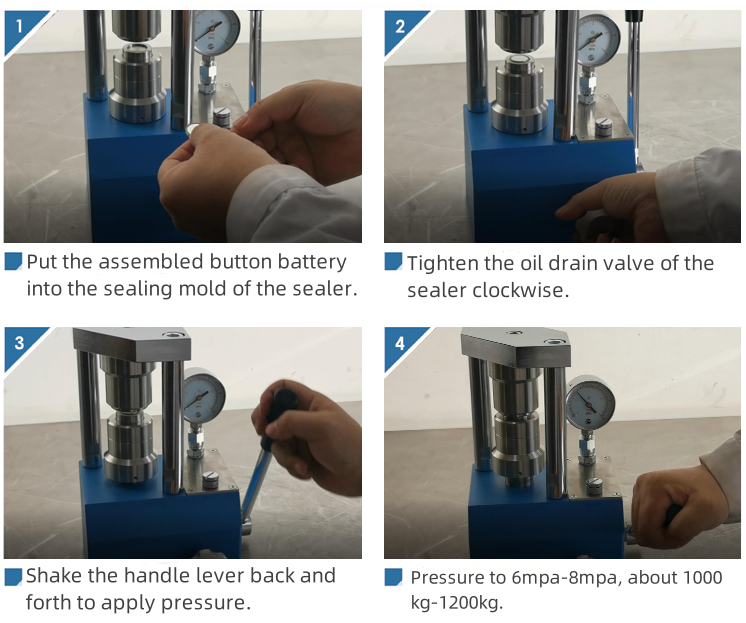

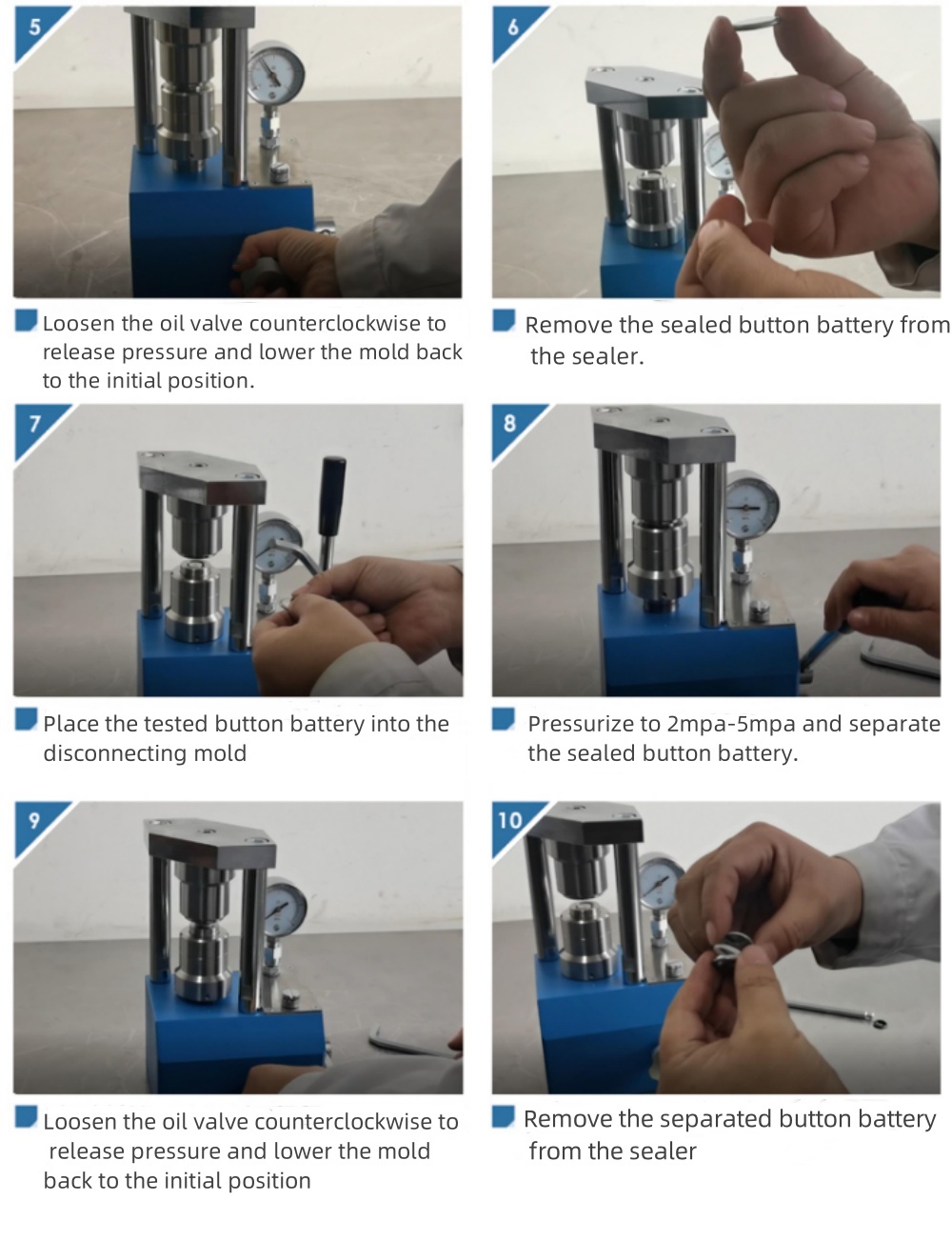

Operating Procedure
