Manual Tablet Press
Description:
Manual tablet press is mainly used for pressing sample tablets within a diameter of 3mm-150mm. The tablet press is equipped with molds of various sizes based on the mechanical lever principle. It is both practical and convenient. The main machine is made of 304 stainless steel and the shell is made of environmentally friendly spray-coated. The pressure display can be directly displayed. It is one of the essential equipment for laboratory research and development and production enterprises to handle powder.
Category：
SEND A MESSAGE：mt15@mitr.cn Inquire Now
Product Description

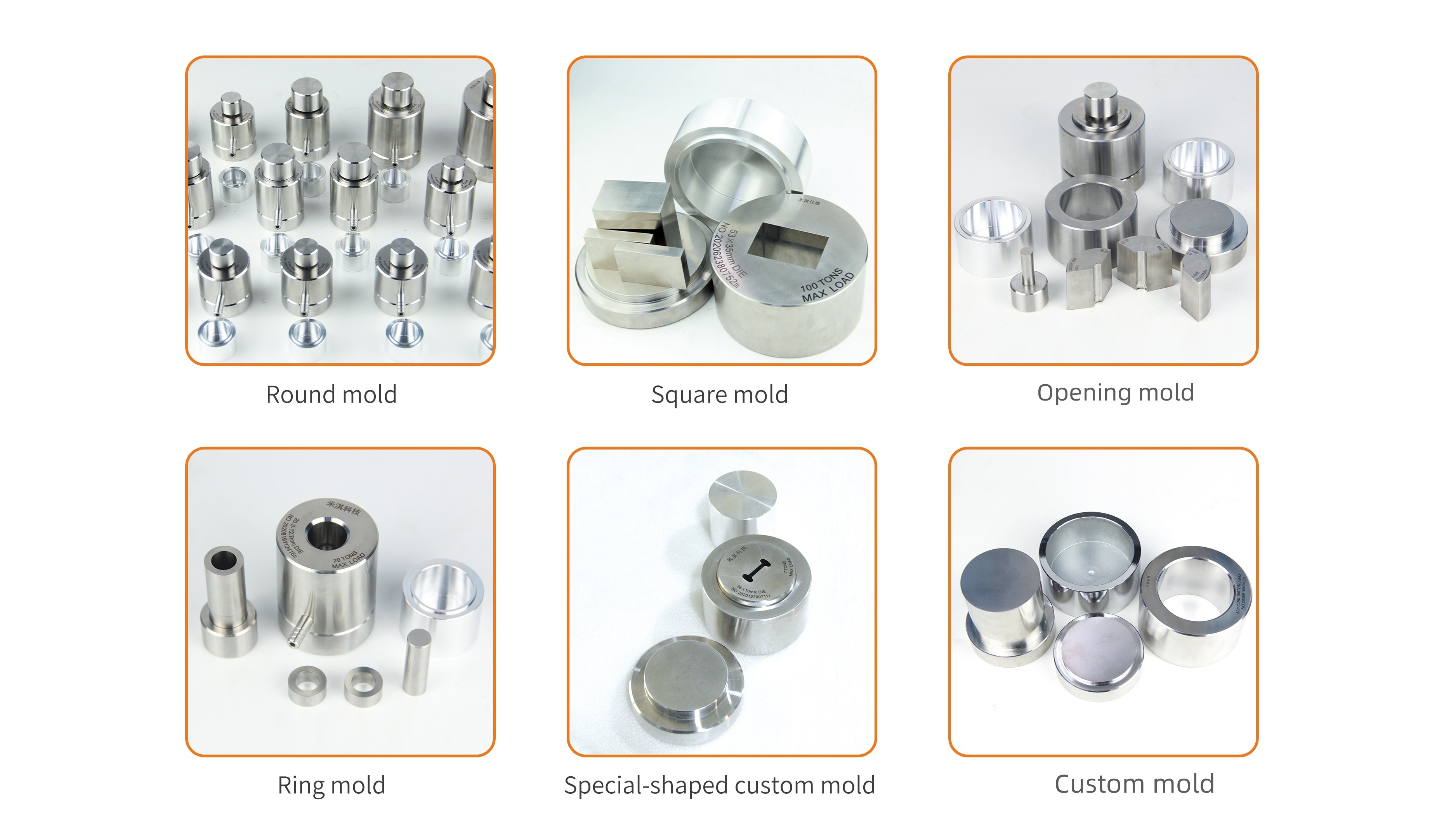

Manual tablet press mainly uses hand pressure to increase pressure to achieve the purpose of sample molding, which is convenient and fast. There are also many choices for the tablet press molds, including round molds, square molds, open-flap molds, ring molds, spherical molds, heating molds, special-shaped molds, custom-made and other different specifications and materials.
Features
1)Pure aluminum alloy handwheel is durable
2)The electroplated countersunk hexagon socket screws will not hurt your hands;
3)Dual-scale pressure gauge without conversion;
4)Pure aluminum handle is beautiful and durable;
5)Labor-saving design of the handle position;
6)The chrome-plated cylinder has good sealing and long service life.

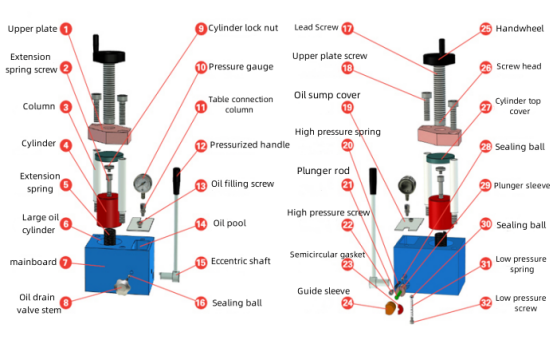

Product Analysis
Product Parameters
a（Pointer type）
|
Model |
MC-5 |
MC-12 |
MC-15 |
MC-15B |
MC-24 |
MC-30 |
MC-40 |
|
Pressure range |
0-5（0-31.4MPa） |
0-12T (0-30MPa) |
0-15（0-30MPa） |
0-15T (0-30MPa） |
0-24T (0-34MPa) |
0-30T (0-31.5MPa） |
0-40T（0-30MPa） |
|
Piston diameter |
Chrome plated oil cylinder Φ45mm（d） |
Chrome plated oil cylinder Φ70mm(d) |
Chrome plated oil cylinder Φ80mm（d） |
Chrome plated oil cylinder Φ80mm（d） |
Chrome plated oil cylinder Φ95mm(d) |
Chrome plated oil cylinder Φ110mm（d） |
Chrome plated oil cylinder Φ130mm（d） |
|
Pressure gauge |
Pressure intensity display |
Pressure intensity display |
Pressure intensity display |
Pressure intensity display |
Pressure intensity display |
Pressure intensity display |
Pressure intensity display |
|
Maximum piston distance |
30mm（T） |
30mm（T） |
30mm（T） |
30mm（T） |
30mm（T） |
40mm（T） |
50mm（T） |
|
Pressure stability |
≤1MPa/10min |
≤1MPa/10min |
≤1MPa/10min |
≤1MPa/10min |
≤1MPa/10min |
≤1MPa/10min |
≤1MPa/10min |
|
Working table diameter |
Φ80mm（D） |
Φ80mm（D） |
Φ90mm（D） |
Φ90mm（D） |
Φ105mm（D） |
Φ120mm（D） |
Φ140mm（D） |
|
No. of columns |
2 |
2 |
4 |
2 |
4 |
4 |
4 |
|
Column spacing |
85*120mm |
96*130mm |
80*130mm |
140*150mm |
80*150mm |
92*160mm |
106*185mm |
|
Dimensions |
210*150*350mm |
225*155*380mm |
245*175*390mm |
245*175*390mm |
245*175*415mm |
275*195*420mm |
295*215*500mm |
|
Weight |
20kg |
28kg |
40kg |
38kg |
42kg |
56kg |
75kg |
b (Protective type)
|
Model |
MCF-15 |
MCF-24 |
MCF-30 |
MCF-40 |
MCF-60 |
|
Pressure range |
0-15T (0-30MPa) |
0-24T (0-34MPa） |
0-30T（0-31.5MPa） |
0-40T (0-30MPa) |
0-60T (0-34MPa） |
|
Piston diameter |
Chrome plated oil cylinder Φ80mm(d) |
Chrome plated oil cylinder Φ95mm（d） |
Chrome plated oil cylinder Φ110mm（d） |
Chrome plated oil cylinder Φ130mm(d) |
Chrome plated oil cylinder Φ150mm（d） |
|
Pressure gauge |
Pressure intensity display |
Pressure intensity display |
Pressure intensity display |
Pressure intensity display |
Pressure intensity display |
|
Maximum piston distance |
30mm（T） |
30mm（T） |
40mm（T） |
50mm（T） |
50mm（T） |
|
Protective cover |
Plexiglas |
Plexiglas |
Plexiglas |
Plexiglas |
Plexiglas |
|
Pressure stability |
≤1MPa/10min |
≤1MPa/10min |
≤1MPa/10min |
≤1MPa/10min |
≤1MPa/10min |
|
Working table diameter |
Φ90mm（D） |
Φ105mm（D） |
Φ120mm（D） |
Φ140mm（D） |
Φ160mm（D） |
|
No. of columns |
4 |
4 |
4 |
4 |
4 |
|
Column spacing |
80*130mm |
112*160mm |
112*160mm |
126*185mm |
185*250mm |
|
Dimensions |
260*175*395mm |
305*195*425mm |
305*195*425mm |
355*215*505mm |
405*240*565mm |
|
Weight |
42kg |
65kg |
65kg |
90kg |
120kg |
c (Digital display type)
|
Model |
MCS-3 |
MCS-5 |
MCS-12 |
MCS-15 |
MCS-24 |
MCS-30 |
|
Pressure range |
0-3T（0-28.8MPa） |
0-5T（0-31.4MPa） |
0-12T（0-30MPa） |
0-15T （0-30MPa） |
0-24T （0-34MPa） |
0-30T（0-31.5MPa） |
|
Piston diameter |
Chrome plated oil cylinder Φ35mm（d） |
Chrome plated oil cylinder Φ45mm（d） |
Chrome plated oil cylinder Φ70mm（d） |
Chrome plated oil cylinder Φ80mm（d） |
Chrome plated oil cylinder Φ95mm（d） |
Chrome plated oil cylinder Φ110mm（d） |
|
Pressure gauge |
Digital display 0.00-3.00 tons |
Digital display 0.00-5.00 tons |
Digital display 0.00-12.00 tons |
Digital display 0.00-15.00 tons |
Digital display 0.00-24.00 tons |
Digital display 0.00-30.00 tons |
|
Maximum piston distance |
30mm（T） |
30mm（T） |
30mm（T） |
30mm（T） |
30mm（T） |
40mm（T） |
|
Pressure stability |
≤1MPa/10min |
≤1MPa/10min |
≤1MPa/10min |
≤1MPa/10min |
≤1MPa/10min |
≤1MPa/10min |
|
Working table diameter |
Φ80mm（D） |
Φ80mm（D） |
Φ80mm（D） |
Φ90mm（D） |
Φ105mm（D） |
Φ120mm（D） |
|
No. of columns |
2 |
2 |
2 |
4 |
4 |
4 |
|
Column spacing |
96*130mm |
96*130mm |
96*130mm |
80*130mm |
80*150mm |
92*160mm |
|
Dimensions |
225*155*380mm |
225*155*380mm |
225*155*380mm |
245*175*390mm |
245*175*415mm |
275*195*420mm |
|
Weight |
28kg |
28kg |
28kg |
40kg |
42kg |
56kg |
d (protection digital display type)
|
Model |
MCFS-15 |
MCFS-24 |
MCFS-30 |
MCFS-40 |
MCFS-60 |
|
Pressure range |
0-15T (0-30MPa) |
0-24T (0-34MPa） |
0-30T（0-31.5MPa） |
0-40T (0-30MPa) |
0-60T (0-34MPa） |
|
Piston diameter |
Chrome plated oil cylinder Φ80mm(d) |
Chrome plated oil cylinder Φ95mm（d） |
Chrome plated oil cylinder Φ110mm（d） |
Chrome plated oil cylinder Φ130mm(d) |
Chrome plated oil cylinder Φ150mm（d） |
|
Pressure gauge |
Digital display 0.00-15.00 tons |
Digital display 0.00-15.00 tons |
Digital display 0.00-40.00 tons |
Digital display 0.00-40.00 tons |
Digital display 0.00-60.00 tons |
|
Maximum piston distance |
30mm（T） |
30mm（T） |
40mm（T） |
50mm（T） |
50mm（T） |
|
Protective cover |
Plexiglas |
Plexiglas |
Plexiglas |
Plexiglas |
Plexiglas |
|
Pressure stability |
≤1MPa/10min |
≤1MPa/10min |
≤1MPa/10min |
≤1MPa/10min |
≤1MPa/10min |
|
Working table diameter |
Φ90mm（D） |
Φ105mm（D） |
Φ120mm（D） |
Φ140mm（D） |
Φ160mm（D） |
|
No. of columns |
4 |
4 |
4 |
4 |
4 |
|
Column spacing |
80*130mm |
112*160mm |
112*160mm |
126*185mm |
185*250mm |
|
Dimensions |
260*175*395mm |
305*195*425mm |
305*195*425mm |
355*215*505mm |
405*240*565mm |
|
Weight |
42kg |
65kg |
65kg |
90kg |
120kg |
Product Display
