Trinocular Inverted Metallurgical Microscope
Description:
Category：
SEND A MESSAGE：mt15@mitr.cn Inquire Now
Product Description
The MT-4XC trinocular inverted metallurgical microscope features high-quality long-focal-length plan achromatic objectives and wide-field plan eyepieces. Its Köhler illumination system provides uniform illumination across the entire field of view. Its compact design offers convenient and comfortable operation. Ideal for microscopic observation of metallographic structures and surface morphology, it is an ideal instrument for research in metallurgy, mineralogy, and precision engineering.
Configuration Table
| Standard configuration | Machine model | ||||||
|
Component |
Specification |
MT-4XC |
|||||
|
Optical system |
Finite-distance chromatic aberration-corrected optical system |
√ |
|||||
|
Observation tube |
Hinged binocular tube with 30° tilt; trinocular tube with adjustable interpupillary distance and diopter |
√ |
|||||
|
Eyepiece |
WF10X (Ø18mm) wide field of view |
√ |
|||||
|
Long-field plan achromatic objective |
PL L 10X/0.25 WD8.90mm |
√ |
|||||
|
PL L 20X/0.40 WD3.75mm |
√ |
||||||
|
PL L 40X/0.65 WD2.69mm |
√ |
||||||
|
SP 100X/0.90 WD0.44mm （Oil） |
√ |
||||||
|
Transducer |
Ball internal positioning four-hole converter |
√ |
|||||
|
Focusing mechanism |
Coaxial coarse and fine focusing, fine adjustment value: 0.002mm; travel (from the focus on the stage surface): 30mm. Coarse |
√ |
|||||
|
Stage |
Double-layer mechanical movable type (size: 180mmX150mm, moving range: 15mmX15mm) |
√ |
|||||
|
Lighting system |
6V 20W halogen lamp, brightness adjustable |
√ |
|||||
|
Color filters |
Yellow filter, green filter, blue filter |
√ |
|||||

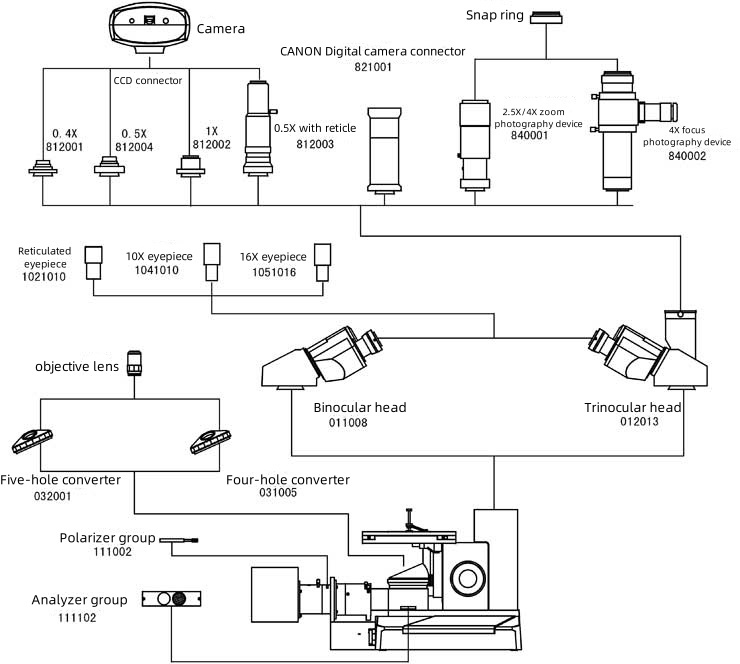

| Optional Configuration | |||||||
|
Eyepieces |
Wide field of view WF16X (Φ11mm) |
○ |
|||||
|
WF10X (Φ18mm) with crosshairs |
○ |
||||||
|
Long-field plan achromatic objectives |
PL L 50X/0.70 WD2.02mm |
○ |
|||||
|
PL L 60X/0.75 WD1.34mm |
○ |
||||||
|
PL L 80X/0.80 WD0.96mm |
○ |
||||||
|
PL L 100X/0.85 WD0.4mm |
○ |
||||||
|
Transducer |
Five-hole converter with internal ball bearing positioning |
○ |
|||||
|
Polarization accessories |
Analyzer group, polarizer group |
○ |
|||||
|
Metallographic analysis system |
FMIA2024 genuine metallographic analysis software, micrometer (with specifications: 100x0.01mm, 100x0.01cm, calibration points d =0.15mm, d = 0.07mm) |
○ |
|||||
|
Camera |
Sony chip camera devices with 5 million and 12 million pixels |
○ |
|||||
|
Adapter lens interface |
0.65X, 1X adapter lens interface |
○ |
|||||
|
Computer |
HP business machine |
○ |
|||||
