Vacuum Pump Rotary Vane for Vacuum Glove Box
Description:
Features of pump: 1.Special design gas control valve is configured to prevent pump oil from mixing with water and prolong the service life of pump oil 2.High pumping efficiency, high ultimate vacuum, and long service life 3. Equipped with an automatic anti backflow check valve that does not allow for oil return 4. Can be equipped with small diameter conversion joints, KF interfaces, and flange interfaces When suction contains steam, particles, or corrosive gases, auxiliary equipment such as condensers, dust collectors, etc. must be installed at the inlet of the pump
Category：
SEND A MESSAGE：mt15@mitr.cn Inquire Now

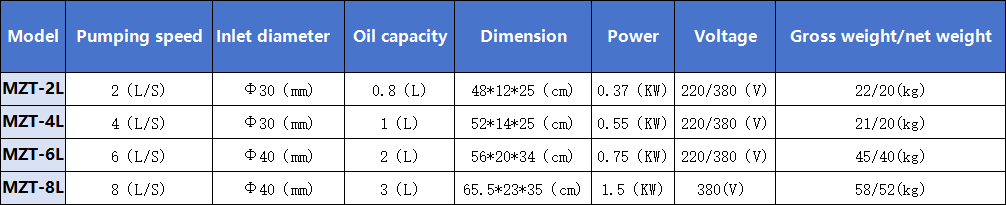

Product Paramenters
| Model | Pumping Speed | Inlet diameter | Oil capacity | Dimension | Power | Voltage | Gross weight | Net weight |
| MZT-2L | 2（L/S) | Φ30（mm) | 0.8（L) | 48*12*25（cm) | 0.37（KW) | 220/380（V) | 22(kg) | 20(kg) |
| MZT-4L | 4（L/S) | Φ30（mm) | 1（L) | 52*14*25（cm) | 0.55（KW) | 220/380（V) | 21(kg) | 20(kg) |
| MZT-6L | 6（L/S) | Φ40（mm) | 2（L) | 56*20*34（cm) | 0.75（KW) | 220/380（V) | 45(kg) | 40(kg) |
| MZT-8L | 8（L/S) | Φ40（mm) | 3（L) | 65.5*23*35（cm) | 1.5（KW) | 380（V) | 58(kg) | 52(kg) |
Products Description

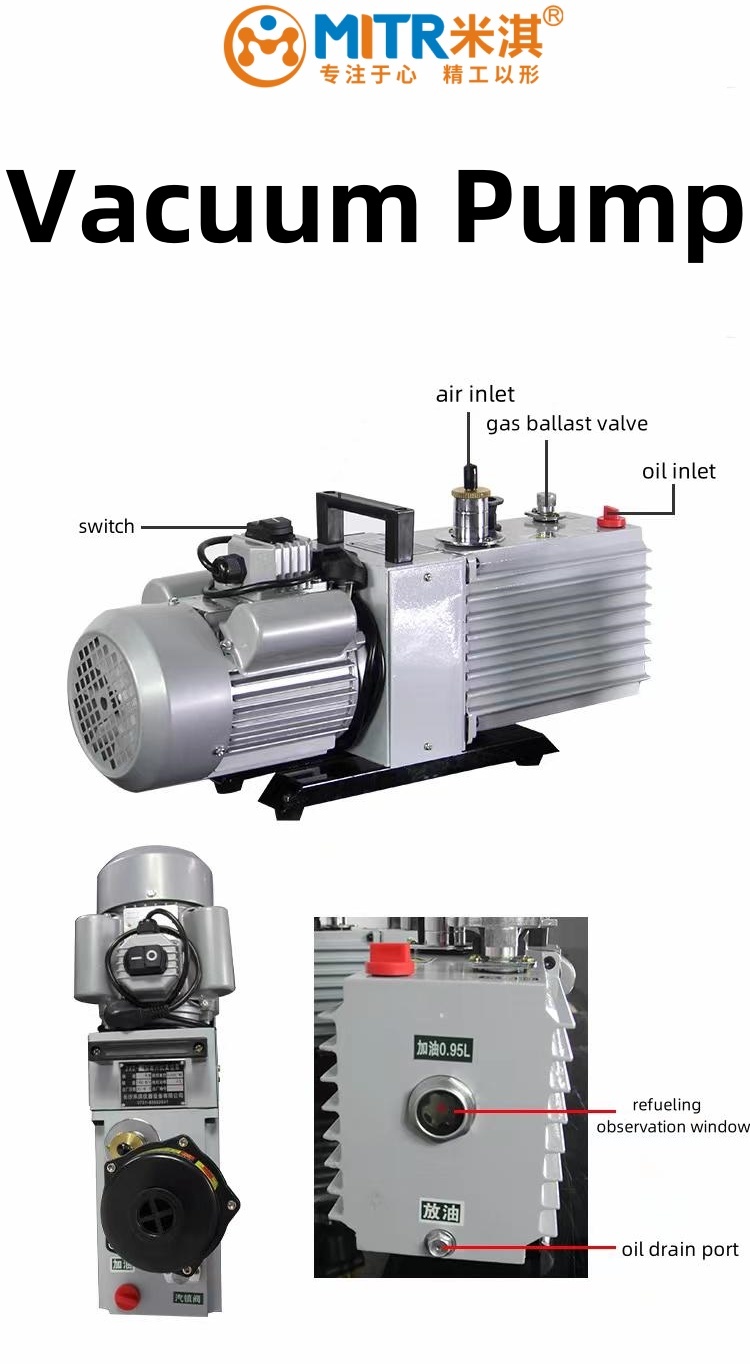

Vacuum Pump Description
The pump is a basic equipment used for sucking air to sealed container to attain vacuum condition. It not only can exclusive use,but also be used for turbocharging pump,diffusion pump, front stage pump for molecular pump, maintenance pump, prepump for titanium pump. Can be used for vacuum drying, freeze-drying, vacuum degassing, vacuum packaging, vacuum adsorption, vacuum forming, coating, food packaging, printing, sputtering, vacuum casting, instruments, instrumentation, refrigerators, Vacuum operation of air conditioning assembly line and laboratory and its supporting use.
Features of pump:
1.Special design gas control valve is configured to prevent pump oil from mixing with water and prolong the service life of pump oil
2.High pumping efficiency, high ultimate vacuum, and long service life
3. Equipped with an automatic anti backflow check valve that does not allow for oil return
4. Can be equipped with small diameter conversion joints, KF interfaces, and flange interfaces
When suction contains steam, particles, or corrosive gases, auxiliary equipment such as condensers, dust collectors, etc. must be installed at the inlet of the pump
