YXQM Series Mass Production Planetary Ball Mill
Description:
The YXQM series of planetary ball mills for mass production are mass production application equipment based on medium production equipment to meet the production needs of enterprises. They facilitate the smooth transition of materials from the experimental end to the production end, ensure the consistency and repeatability of processes and plans, and thus achieve stable performance of the materials produced.Widely used in new energy, metallurgy, electronics, ceramics, geology, mining, building materials, chemical industry, light industry, beauty, environmental protection and other enterprise material production departments.
Category：
SEND A MESSAGE：mt15@mitr.cn Inquire Now
Product description
The extremely high centrifugal forces of Planetary Ball Mills result in very high pulverization energy and therefore short grinding times.
Suitable for all industries where the quality control process places the highest demands on purity, speed, fineness and reproducibility.
This series of grinding mill can be equipped with vacuum jars, which can grind samples in a vacuum state. It is very suitable for research tasks such as scientific research institutions, universities, and corporate laboratories from the experimental end to the production end to verify the feasibility of mass production, as well as routine tasks such as mixing and homogenizing soft, hard, brittle or fibrous materials.
| Digital display, simple operation, precise parameter setting
| Variable speed from 10 to 440/360 rpm, speed ratio 1:2
| Batch processing, maximum 4x6/9L samples, can process 4 materials at the same time
| Electric cover opening and one-piece crane configuration are easy and convenient
| Can store 3 modes and 15 plans
| Power-off protection memory self-start function
| Can be used for dry grinding, wet grinding, vacuum grinding, and atmosphere-protected grinding
| The machine stops when the lid is opened, and the self-acting lock prevents loosening, ensuring safety.
| Equipped with rollers and swivel feet, it is easy to use the rollers when transporting and moving, and the swivel foot bracket will not move during operation.

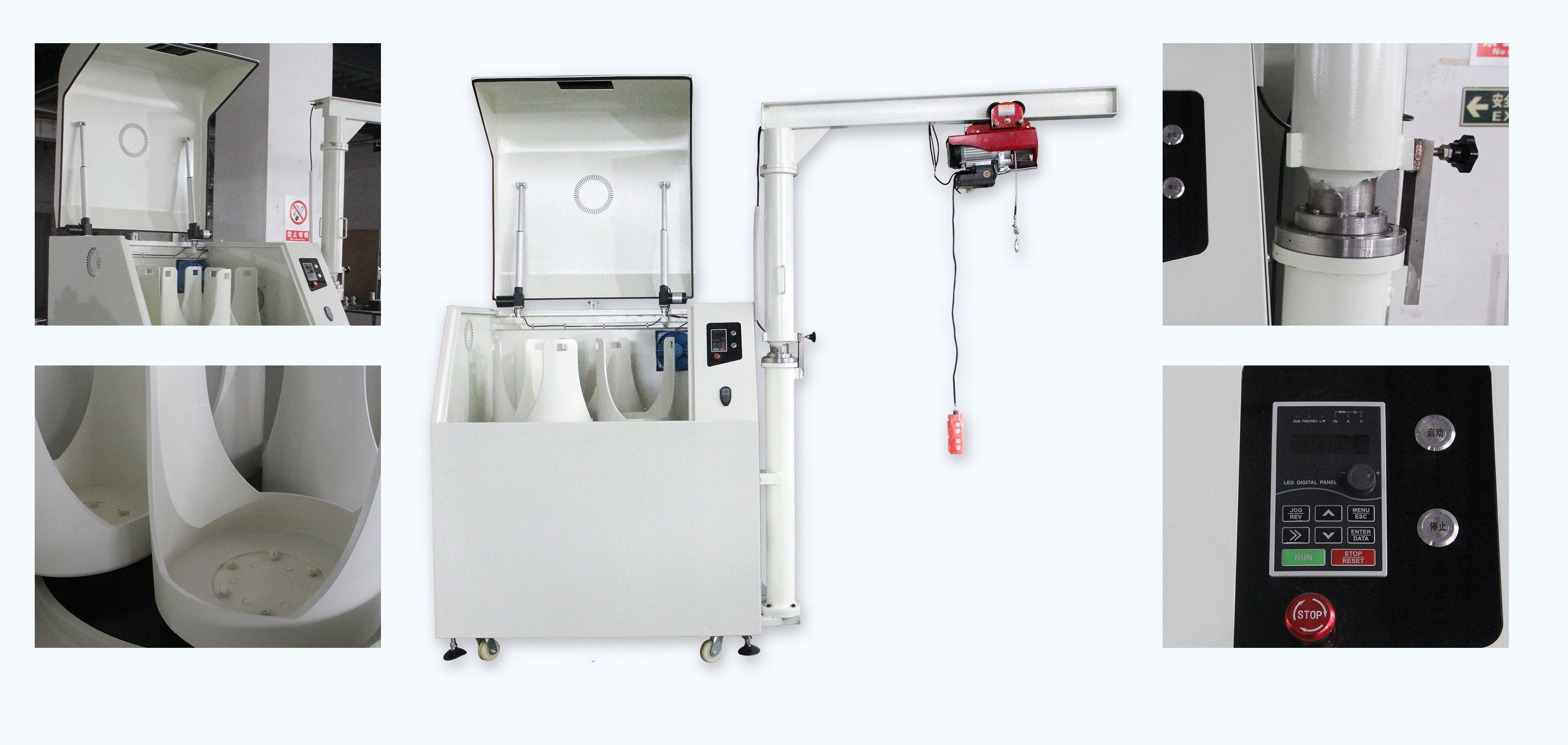

YXQM Series Detail Processing
Technical Parameters
|
Applications |
Crushing, mixing, homogenizing, colloid grinding, mechanical alloying, mechanochemistry |
|||||||
|
Field of application |
New energy, geology/metallurgy, glass/ceramics, engineering/electronics, building materials, environment/recycling, agriculture, chemistry, medicine, biology |
|||||||
|
Feed material |
Soft, hard, brittle, fibrous—dry or wet |
|||||||
|
Size reduction principle |
Impact force, friction |
|||||||
|
Material Feed Size |
< 5 mm soil<10 mm |
|||||||
|
Final Fineness * |
Used for colloid grinding, the sample is less than 0.1 micron |
|||||||
|
No. of Grinding Stations |
4 |
|||||||
|
Grinding method |
Can be dry grinding, wet grinding, vacuum grinding, atmosphere protection grinding |
|||||||
|
Grinding jar material |
Stainless steel, carbide, zirconium oxide, aluminum oxide, silicon carbide, silicon nitride, polyurethane, nylon, polytetrafluoroethylene, agate |
|||||||
|
Speed ratio |
1 : 2 |
|||||||
|
Operation Mode |
3 types: unidirectional, alternating forward and reverse, multi-stage |
|||||||
|
Storable SOPs |
15 |
|||||||
|
Time setting |
Digital display ，Run/stop time: 0-9999 minutes |
|||||||
|
Power protection |
Power-off protection memory self-start function |
|||||||
|
Model |
YXQM-40L |
YXQM-60L |
YXQM-80L |
YXQM-100L |
||||
|
Grinding jar capacity |
5-10L |
10-15L |
10-20L |
10-25L |
||||
|
Vacuum jar capacity |
5-10L |
10-15L |
10-20L |
10-25L |
||||
|
Revolution speed |
5-220r/min |
5-220r/min |
5-180r/min |
5-180r/min |
||||
|
Rotation speed |
10-440r/min |
10-440r/min |
10-360r/min |
10-360r/min |
||||
|
Power |
7.5KW |
7.5KW |
15KW |
15KW |
||||
|
Voltage |
Three-phase, 380V/50Hz |
|||||||
|
Dimension(W x H x D) |
1160 x 945 x 1450mm |
990x730x860mm | 1620x1110x1670mm | |||||
|
Weight |
400kg |
610kg |
870kg |
1060kg |
||||
|
*Affected by sample material properties and instrument configuration/settings |
||||||||
Discharge Machine Parameters
|
Model |
XL-40 |
XL-60 |
XL-80 |
XL-100 |
|
Discharge tank |
10L |
15L |
20L |
25L |
|
Discharge flange port |
100mm |
100mm |
100mm |
100mm |
Working Principle
The grinding jar is eccentrically located on the sun wheel of the planetary ball mill. The sun wheel moves in the opposite direction of the grinding jar in a ratio of 1:2, and the grinding balls in the grinding jar are subjected to a superimposed rotational motion, the so-called Coriolis force.
The speed difference between the balls and the grinding jars creates an interaction between friction and impact forces, which releases high dynamic energy. The interaction between these forces makes the material size reduction in planetary ball mills high and very efficient.
