Cantilever agitator is an instrument mainly used for mixing, homogenization, suspension, injection of gas and circulation of high viscosity substances. The products are used in daily chemical products, experimental research, petrochemical industry, college teaching and other fields.

Features

1. It uses maintenance-free brushless DC motor, which is very suitable for long-term high-load work in the laboratory;
2. It uses a microprocessor to ensure constant speed operation;
3. It is sealed and ultra-quiet, with stable speed and built-in automatic overload protection, suitable for use in different occasions;
4. Penetrating stirring paddle;
5. Low-speed and smooth start to enhance safety;
6. The speed is adjusted by knob, with forward and reverse functions;
7. Fully digital speed setting and display, button control of forward and reverse functions, easy to enjoy the fun of laboratory stirring;

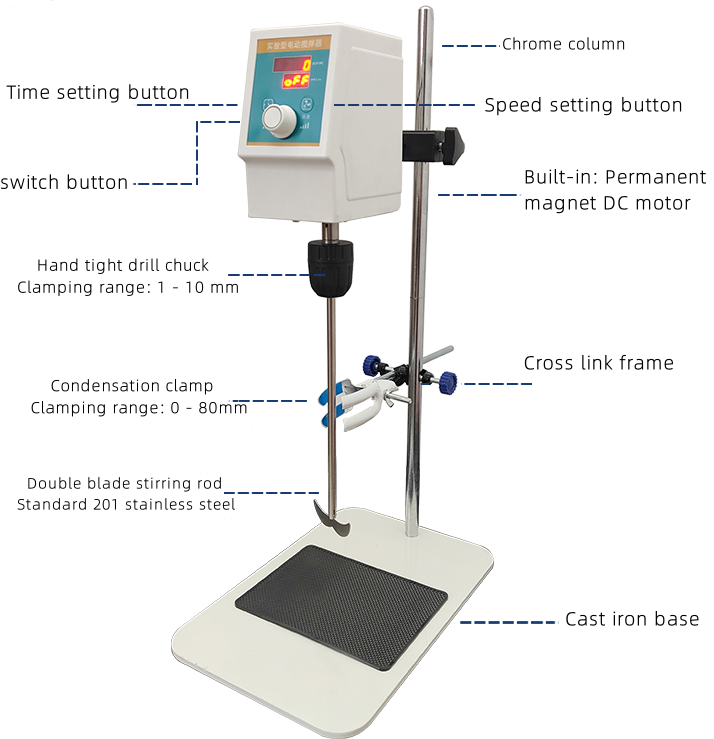

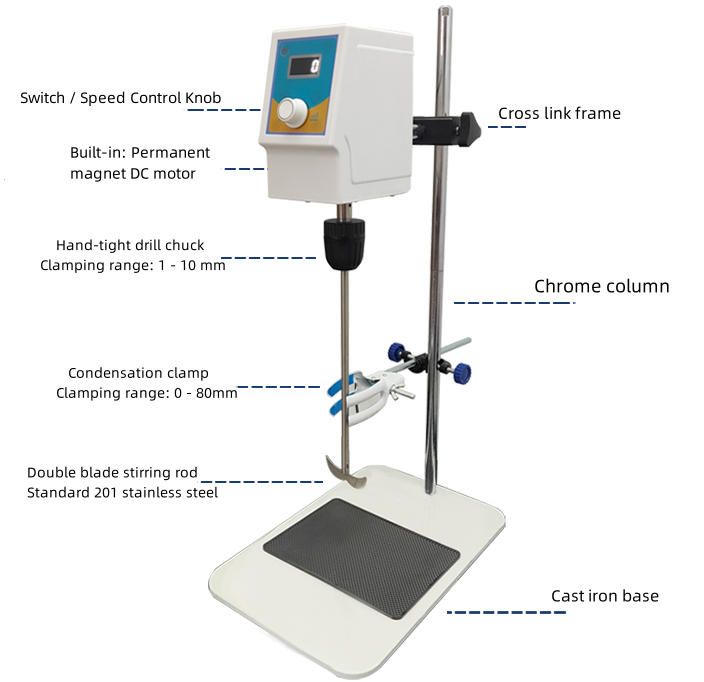

8. Standard configuration: stirrer host, flat iron frame, fixing clamp and stainless steel stirring paddle;

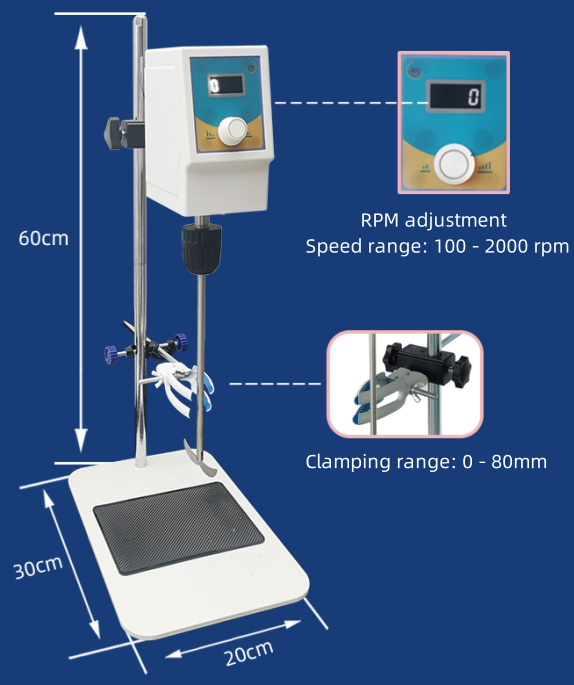

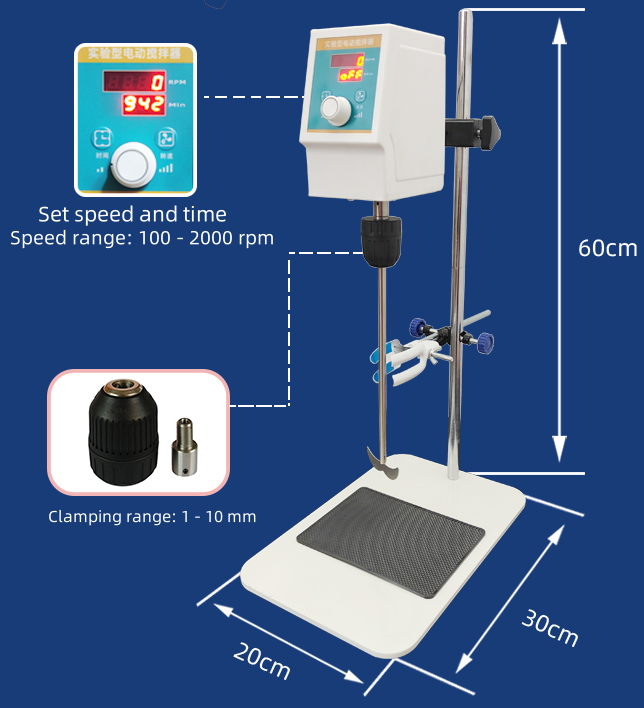

9. Display control mode: knob control LED digital display/digital control.

Product Paramenters

Model	DNJ-30X	DNJ-60X	DNJ-80X	DNJ-30S	DNJ-60S	DNJ-80S
Speed	100-2000RPM
Speed display mode	Digital
Timing range	No			0-999min
Working time	Continous
Voltage	AC100V-230V Frequency 50Hz/60Hz
Recommended mixing capacity (H20)	3L	10L	15L	3L	10L	15L
Maximum mixing capacity (H20)	10L	20L	30L	10L	20L	30L
Whole machine power	72W	144W	190W	72W	144W	190W
Condensation clamp clamping range	0-80mm
Drill chuck clamping range	1-10mm
Motor Type	Permanent Magnet DC Motor
