Low Temperature Circulation Air Cooling Planetary Ball Mill
Description:
Low temperature circulation air cooling planetary ball mill is set at 1~30℃. It is used in the fields of biology, aviation, etc. It is suitable for grinding experiments of low-temperature materials that are sensitive to temperature, easy to be falsely welded, and will stick to the wall and agglomerate.The low temperature circulating air cooling planetary ball mill is a laboratory equipment for fine grinding of materials in a low temperature environment. It is an air cooling low temperature ball milling method developed to maintain the low temperature state of the sample material for the material properties and the temperature requirements of the experiment to prevent the material temperature from being too high and affecting the original properties of the material. The temperature setting of the air cooling planetary ball mill is 1~30℃.
Category：
SEND A MESSAGE：mt15@mitr.cn Inquire Now
Product Description
The low temperature circulating air cooling planetary ball mill is a laboratory equipment for fine grinding of materials in a low temperature environment. It is an air cooling low temperature ball milling method developed to maintain the low temperature state of the sample material for the material properties and the temperature requirements of the experiment to prevent the material temperature from being too high and affecting the original properties of the material. The temperature setting of the air cooling planetary ball mill is 1~30℃.
Low-temperature nano-level grinding planetary ball mill

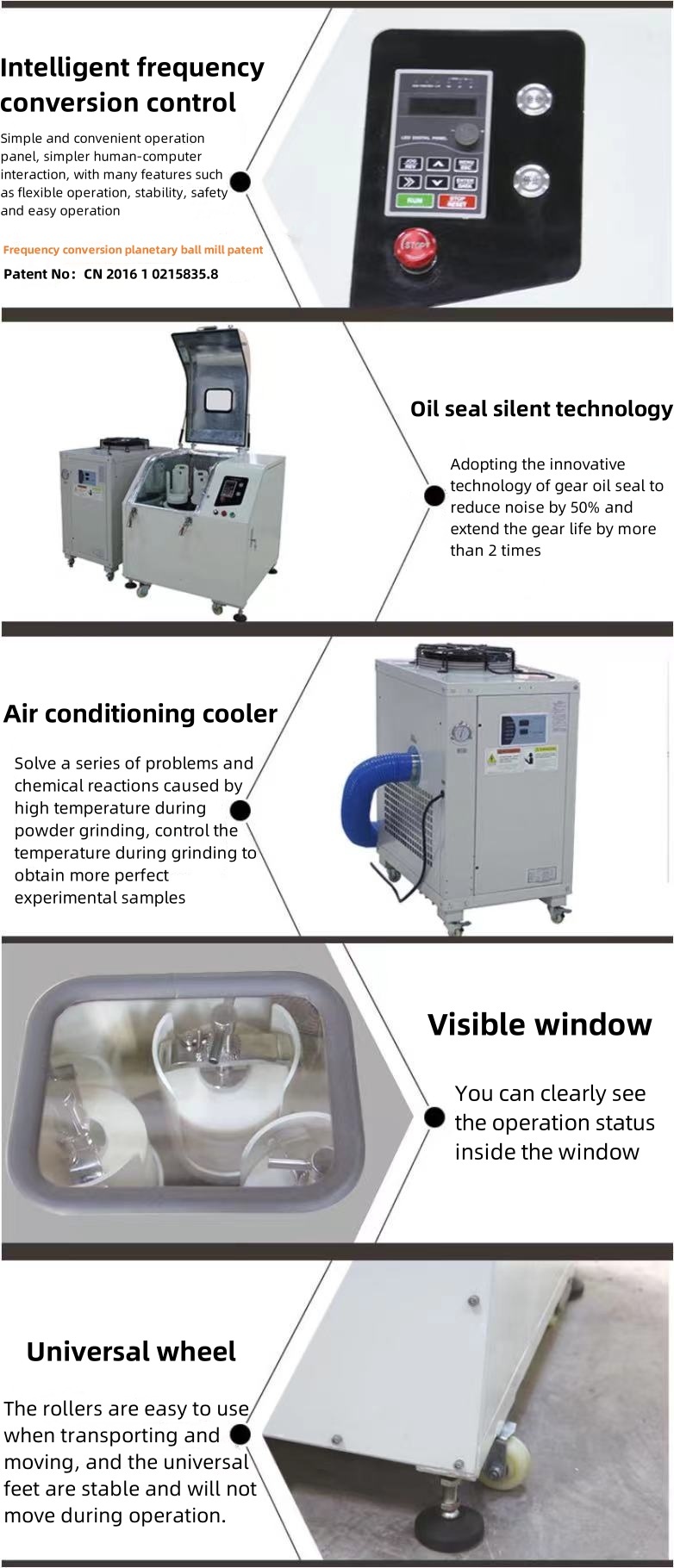

| Panasonic compressor configuration, stable quality and fast cooling, the lowest temperature inside the cavity can be reduced to 1℃
| Intelligent frequency conversion control, automatic frequency conversion setting 1~30℃
| Speed change from 10 to 900/360rpm (related to the model size), speed ratio 1:2
| The cavity is made of insulation material to ensure a continuous low-temperature environment in the cavity, and the cavity automatically recycles cold air, greatly reducing the cost of use
| Vertical planetary ball mill oil seal silent invention patent design, low noise and longer service life (patent number: CN 2016 2 0215835.8; patent number: ZL 2014 2 0375569.3)
| All-round planetary ball mill direct connection motor design, more accurate speed, simpler maintenance
| Can store 3 modes and 15 solutions
| Power-off protection memory self-start function
| Can dry grind, wet grind, vacuum grind, atmosphere protection grind
| Equipped with rollers and universal feet, the rollers are easy to use when transporting and moving, and the universal feet are stable and do not move during operation
| Suitable for vertical planetary ball mills, all-round planetary ball mills
Low temperature circulating air cooling planetary ball mill XH series
Technical parameters
|
Applications |
crushing, mixing, homogenizing, colloid grinding, mechanical alloying, mechanochemistry |
||||
|
Field of application |
New energy, geology/metallurgy, glass/ceramics, engineering/electronics, building materials, environment/recycling, agriculture, chemistry, biology |
||||
|
Feed material |
Soft, hard, brittle, fibrous—dry or wet |
||||
|
Size reduction principle |
Impact force, friction |
||||
|
Material Feed Size |
< 5 mm soil<10 mm |
||||
|
Final Fineness * |
Used for colloid grinding, the sample is less than 0.1 micron |
||||
|
No. of Grinding Stations |
4 | ||||
|
Grinding method |
Can be dry grinding, wet grinding, vacuum grinding, atmosphere protection grinding |
||||
|
Grinding jar material |
Stainless steel, carbide, zirconium oxide, aluminum oxide, silicon carbide, silicon nitride, polyurethane, nylon, polytetrafluoroethylene, agate |
||||
|
Speed ratio |
1 : 2 |
||||
|
Operation Mode |
3 types: unidirectional, alternating forward and reverse, multi-stage |
||||
|
Storable SOPs |
15 |
||||
|
Time setting |
PLC/digital display; Run/stop time: 0-9999 minutes | ||||
|
Power protection |
Power-off protection memory self-start function |
||||
|
Model |
XH-XQM1L |
XH-XQM2L | XH-XQM4L | XH-XQM8L | XH-XQM12L |
|
Grinding jar capacity |
50-250ml | 50-500ml | 50-1000ml | 500-2000ml | 1000-3000ml |
|
Vacuum jar capacity |
50-100ml | 50-250ml | 50-500ml | 500-2000ml | 1000-3000ml |
|
Revolution speed |
5-450r/min | 5-400r/min | 5-400r/min | 5-320r/min | 5-320r/min |
|
Rotation speed |
10-900r/min | 10-800r/min | 10-800r/min | 10-640r/min | 10-640r/min |
|
Temperature control |
1-15℃ | 3-15℃ | |||
|
Air cooler |
2P | 2P-3P | |||
|
Power |
0.55KW | 0.75KW | 0.75KW | 1.5KW | 1.5KW |
|
Voltage |
Single phase, 220V/50Hz | Single phase, 220V/50Hz Three phase, 380V/50Hz |
Three-phase, 380V/50Hz | ||
|
Dimension(W x H x D) |
630 x 435 x 500 mm | 710 x 495 x 610 mm | 820 x 560 x 780mm | ||
|
Weight |
70kg |
96kg | 99kg | 191kg | 193kg |
|
Model |
XH-XQM20L | XH-XQM40L | XH-XQM60L | XH-XQM80L | XH-XQM100L |
|
Grinding jar capacity |
1-5L | 5-10L | 10-15L | 10-20L | 10-25L |
|
Vacuum jar capacity |
1-5L | 5-10L | 10-15L | 10-20L | 10-25L |
|
Revolution speed |
5-230r/min | 5-220r/min | 5-220r/min | 5-180r/min | 5-180r/min |
|
Rotation speed |
10-460r/min | 10-440r/min | 10-440r/min | 10-360r/min | 10-360r/min |
|
Temperature control |
5-20℃ | ||||
|
Air cooler |
3P | 3P | 2P-3P | 3P-5P | 5P |
|
Power |
3KW | 7.5KW | 7.5KW | 11KW | 11KW |
|
Voltage |
Three-phase, 380V/50Hz | ||||
|
Dimension(W x H x D) |
990 x 660 x 870 mm | 1160 x 945 x 1450mm | 990 x 730 x 860 mm | 1620 x 1110 x 1670 mm | |
|
Weight |
288kg | 400kg | 610kg | 870kg | 1060kg |
| *Affected by sample material properties and instrument configuration/settings | |||||
Vertical Planetary Ball Mill
Working Principle
The grinding jar is eccentrically located on the sun wheel of the planetary ball mill. The sun wheel moves in the opposite direction of the grinding jar in a ratio of 1:2, and the grinding balls in the grinding jar are subjected to a superimposed rotational motion, the so-called Coriolis force.
The speed difference between the balls and the grinding jars creates an interaction between friction and impact forces, which releases high dynamic energy. The interaction between these forces makes the material size reduction in planetary ball mills high and very efficient.
